How to Size a Hybrid Inverter for Surge Power (Not Just Continuous kW)
The phone call usually begins with frustration. An installer explains that the inverter keeps faulting during outages, even though everything works perfectly when the grid is online. Energy storage batteries are charged, solar production looks normal, and load calculations appear correct. Yet as soon as the system transitions into backup mode, the hybrid inverter shuts down.
After reviewing the data, the root cause becomes clear. The hybrid inverter is not defective; it is overloaded during motor startup.
The system was sized using monthly energy consumption in kilowatt-hours (kWh), but not the instantaneous power demand in kilowatts (kW). That difference matters most in the first few seconds after a grid failure. When the utility grid is connected, it quietly supplies high inrush current for motors. The homeowner never sees this support. Once the grid drops, however, the inverter must provide all of that surge power alone. If the startup demand exceeds its short-duration capacity, the inverter shuts down to protect itself. The mistake is common: designing around energy consumption instead of surge demand.
Continuous Power and Surge Power Are Not the Same
Installers typically focus on three familiar numbers:
- Continuous power rating (kW)
- Total energy consumption (kWh)
- Battery runtime (kWh)
These are important metrics, but they do not tell the full story. Continuous power is what the inverter can supply indefinitely. Surge power, by contrast, is the brief burst of output available for a few seconds to support events such as motor startup. Most nuisance trips during outages occur because surge demand exceeds that short-duration rating, not because the steady load is too high. In other words, the system may appear properly sized on paper while still failing in real-world operation.
Why Electric Motor Startup Is So Demanding
Electric motors draw significantly more current at startup than during normal operation. This spike is commonly called inrush current or locked rotor amps (LRA). It lasts only seconds, but it places the greatest stress on the system.
The phone call usually begins with frustration. An installer explains that the inverter keeps faulting during outages, even though everything works perfectly when the grid is online. Energy storage batteries are charged, solar production looks normal, and load calculations appear correct. Yet as soon as the system transitions into backup mode, the hybrid inverter shuts down. The hybrid inverter is not defective; it is overloaded during motor startup.
The system was sized using monthly energy consumption in kilowatt-hours (kWh), but not the instantaneous power demand in kilowatts (kW). That difference matters most in the first few seconds after a grid failure. When the utility grid is connected, it quietly supplies high inrush current for motors. The homeowner never sees this support. Once the grid drops, however, the inverter must provide all of that surge power alone. If the startup demand exceeds its short-duration capacity, the inverter shuts down to protect itself. The mistake is common: designing around energy consumption instead of surge demand.
Consider Two Types of Typical Residential Loads
- A 5-ton HVAC unit may run at 5–6 kW but surge to 15–20 kW at startup.
- A well pump may run at 1.5 kW but surge to 3–5 kW.
If both start at the same time, surge demand can briefly exceed 20 kW, even though the steady running load remains under 8 kW. That short surge is enough to trip an undersized inverter.
Motor starting current can be 2x – 3x times higher than running current, particularly with across-the-line starts (U.S. Department of Energy). In grid-connected mode, that spike is absorbed by the utility. In islanded mode, it becomes the hybrid inverter’s responsibility.
Why Home Energy Systems Work On-Grid but Fail Off-Grid
When connected to the utility grid, the system benefits from an almost unlimited source of fault current. Voltage remains stable during startup events. The inverter supplements power but does not carry the entire surge.
Once islanded, the situation changes completely. The inverter becomes the sole voltage source and must instantly supply all startup current. If internal protection thresholds are exceeded, it shuts down to protect its power electronics (National Renewable Energy Laboratory). This shutdown is not an equipment failure. It is protection doing exactly what it was designed to do.
The Limits of Average Load Calculations
Designers often calculate running watts, breaker totals, and average household demand. These measurements are useful for energy planning, but they do not capture surge events. Surge does not show up in monthly bills or average load graphs.
A home may average 6 kW and peak at 8 kW during HVAC operation. Yet if startup demand briefly reaches 18 kW, a 12 kW inverter may trip. The system appears oversized until the first motor cycles. Sizing only for steady-state operation ignores the most stressful moment in the system’s life cycle.
How Sol-Ark® Hybrid Inverter Overload Ratings Actually Work
Hybrid inverters operate according to time-based overload curves. While specifications vary by model, the general principle follows a pattern:
- 100% rated load → continuous operation
- 120% load → limited duration
- 150–200% load → a few seconds
If motor startup exceeds that short-duration envelope, the inverter may:
- Reduce voltage
- Drop frequency
- Shut down entirely
The right design question is not, “What is the average daily load?” It is, “Can this inverter support the largest motor startup event on the backup panel?” That shift in thinking changes everything.
How to Size a Hybrid Inverter for Residential & Commercial Surge Challenges

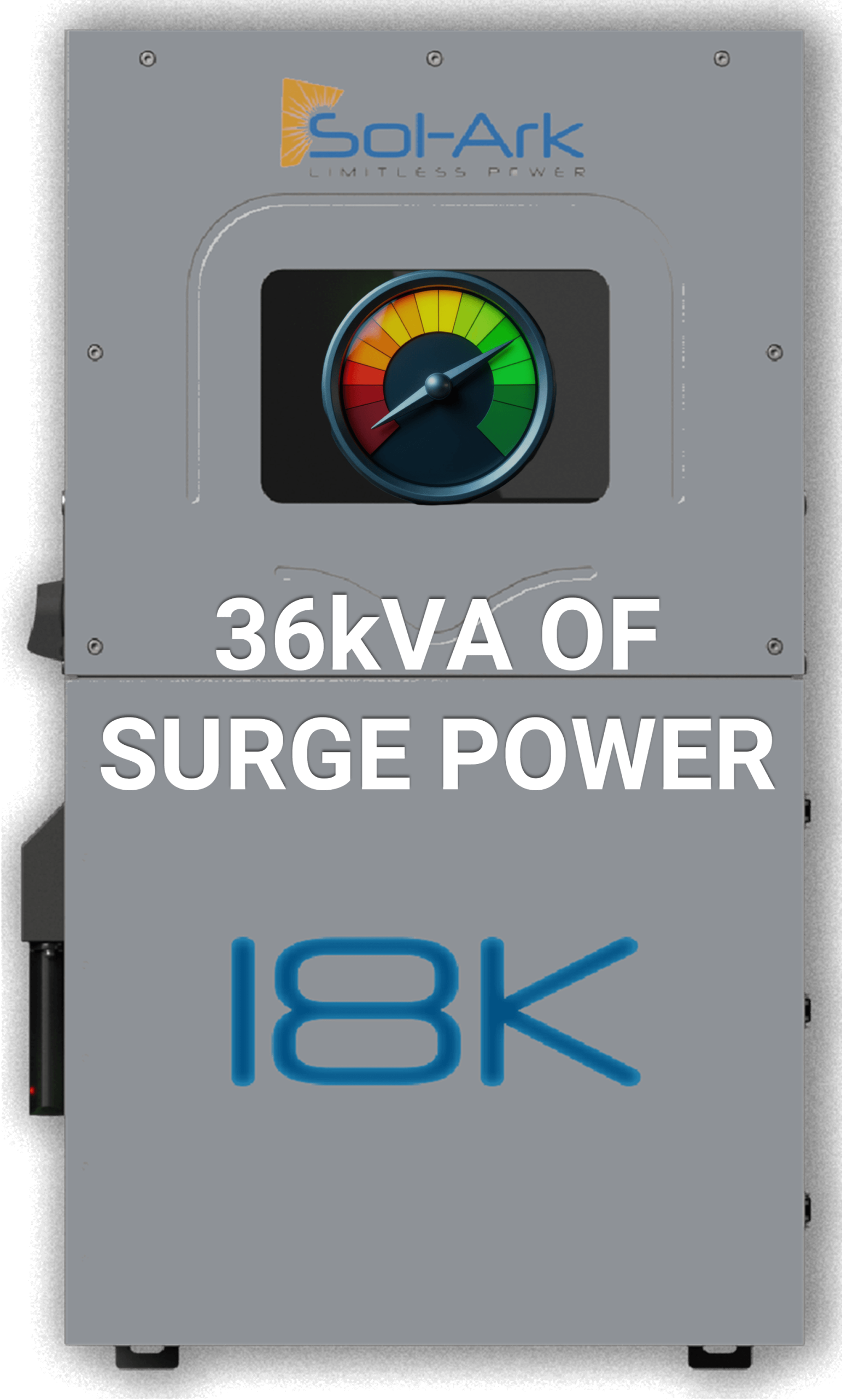

In these settings, the Sol-Ark® 18K-2P Premium hybrid inverters and Sol-Ark® commercial hybrid inverters must be designed like small microgrids. Motor starting strategy becomes a core engineering decision, not an afterthought. In residential systems, the most common surge-related trips come from:
- Central air conditioners
- Heat pumps
- Well pumps
- Refrigeration compressors
- Pool equipment
- Electric dryers cycling with HVAC
Even when each load is acceptable individually, simultaneous startup can exceed surge capacity. In commercial and light industrial environments, the stakes are higher. Systems often include:
- Three-phase compressors
- Walk-in refrigeration
- Hydraulic or process pumps
- Elevator motors
- Large rooftop HVAC units
Designing for Surge Stability
Identify the Largest Motor Load
A stable hybrid energy storage system begins with identifying the largest motor load. That means confirming locked rotor amps, voltage, and starting method. Across-the-line starts produce higher inrush current than soft starts or variable frequency drives.
Identify Simultaneous Startup Events
Next, evaluate coincident startup events. Ask what equipment might start simultaneously. Consider cycling patterns and worst-case scenarios rather than ideal ones. Soft starters and variable frequency drives can reduce inrush current by 30–60%. In many cases, reducing startup demand is more cost-effective than increasing inverter size. This approach improves system stability without overspending on hardware.
Leave Room for Engineering Margin
If an inverter is rated for 20 kW surge for three seconds, designing around a 19 kW event leaves no room for temperature variation, battery voltage fluctuation, or aging motors. Margin prevents service calls and improves long-term reliability.
Batteries don't Increase Surge Capacity
Adding batteries increases runtime. It does not increase the inverter’s surge capability. Surge output is limited by the inverter’s internal power stage. A 10 kW inverter remains a 10 kW inverter, regardless of how many batteries are connected. This distinction is often misunderstood in the field.
Energy storage and surge power are related but not interchangeable.
Design for the Most Stressful 3 Seconds
Identify the Largest Motor Load
A stable hybrid energy storage system begins with identifying the largest motor load. That means confirming locked rotor amps, voltage, and starting method. Across-the-line starts produce higher inrush current than soft starts or variable frequency drives.
Identify Simultaneous Startup Events
Next, evaluate coincident startup events. Ask what equipment might start simultaneously. Consider cycling patterns and worst-case scenarios rather than ideal ones. Soft starters and variable frequency drives can reduce inrush current by 30–60%. In many cases, reducing startup demand is more cost-effective than increasing inverter size. This approach improves system stability without overspending on hardware.
Leave Room for Engineering Margin
If an inverter is rated for 20 kW surge for three seconds, designing around a 19 kW event leaves no room for temperature variation, battery voltage fluctuation, or aging motors. Margin prevents service calls and improves long-term reliability.
Hybrid systems rarely fail under steady load. They fail during the first few seconds after the grid goes down, when motors attempt to start and the inverter must instantly supply full surge current. If the inverter survives those seconds, the system will likely operate reliably for hours.
Designing around that brief but intense moment separates systems that perform in theory from systems that perform in reality. Surge events are short. Their impact on system reliability is not.
Works Cited
National Renewable Energy Laboratory (NREL). Distributed Generation Interconnection Handbook. U.S. Department of Energy, www.nrel.gov
U.S. Department of Energy (DOE). Electric Motor Systems Technical Resources. Office of Energy Efficiency and Renewable Energy, www.energy.gov
